FAN COIL UNITS

DUCTABLE FAN COIL UNITS "CL” VERSION FOR SUSPENDED CEILING

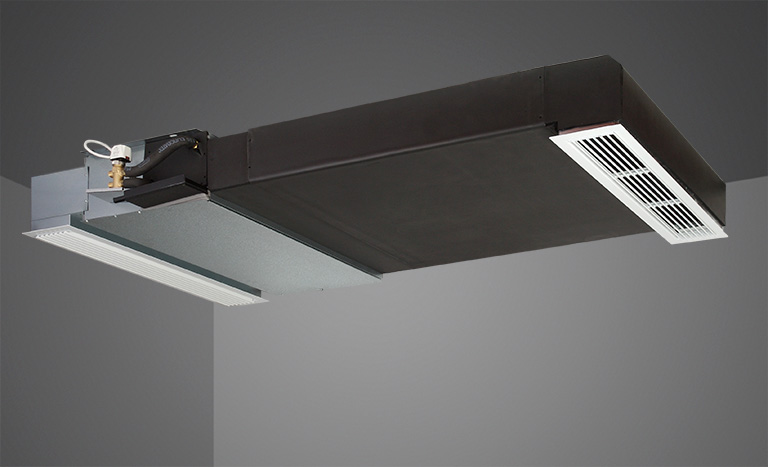

Ductable fan coil units "CL” VERSION for suspended ceiling

Comprising:

  • a standard 3-row heat exchange coil made from copper pipes with aluminium fins, with condensate drainage
  • electric centrifugal fan with fan wheels, screw, condensate tray in galvanised steel, single winding induction motor for a variable speed from 0 to 100%, with rubber support - directly coupled to the fan wheels so as to guarantee super silent operation
  • housing in extra thick galvanised sheet steel, suitably covered to protect from condensate
  • extra thick galvanised steel condensate tray, with anti-algae treatment
  • duct with filter grille, easy to remove for routine cleaning
  • extended air duct with adjustable grille, with inclined flow wing profile, individually assembled on vibration-proof Teflon bases.

On request:

  • 3-way motor operated diverter valve
  • Heating element (power to be specified)
  • Outdoor air intake with motor operated damper
  • Additional coil for the MAXI and SUPERMAXI series (available in 1- to 4-row versions)
  • Ultrasonic humidifier with control board

DOWNLOAD TECHNICAL DRAWINGS

DOWNLOAD TECHNICAL SHEETS
